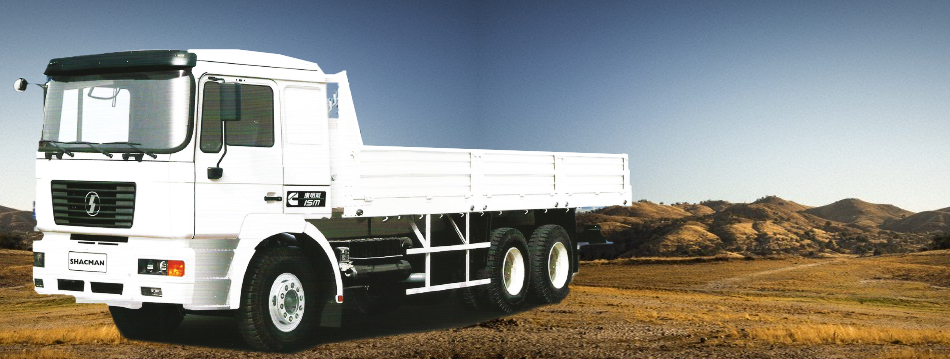

| PRODUCTS :.:: Shacman Lorry |
| |
 |
| |
| Model |
SX1255JM564 |
SX1165JL561 |
| Drive Type |
6 X 4 |
4 X 2 |
|
| Engine |
| Model |
Weichai WP10.340E32 China III |
| Max Output Power (kw/hp) |
213/290 |
| Rated speed(r/min) |
2200 |
| Max.torque(N.m) |
1160N.m/1200 - 1600r/pm |
| Type |
diesel engine,4-stroke,6-cylinder in line,water cooling |
| Bore/stroke |
126mm/130mm |
| Displacement |
9.726L |
| Compression ratio |
17:1 |
|
| Weichai WP10.340E32 China III |
| 199Kw/270hp |
| 2200 |
| 1100N.m/1200 - 1600r/pm |
| diesel engine,4-stroke,6-cylinder in line,water cooling |
| 126mm/130mm |
| 9.726L |
| 17:1 |
|
|
|
| Transmission |
| Model |
Fast 9JS135, 9 forward and 1 reverse |
| Gear ratio |
12.11 8.08 5.93 4.42 3.36 2.41 1.76 1.32 1.00 12.66(R) |
|
| Fast 9JS119, 9 forward and 1 reverse |
| 12.11 8.08 5.93 4.42 3.36 2.41 1.76 1.32 1.00 12.66(R) |
|
|
| Clutch |
C430 diaphragm clutch Eaton |
C430 diaphragm clutch Eaton |
| Front Axle |
MAN 7.5 ton |
MAN 7.5 ton |
| Rear Axle |
13 ton hub reduction drive axle ratio:4.8 |
13 ton hub reduction drive axle ratio:4.8 |
| Chassis |
Frame:"["type cross section in vertical,width 850mm |
Frame:"["type cross section in vertical,width 850mm |
| Fuel tank |
380L steel |
380L steel |
| Steering |
intergral circuiting ball power steering |
intergral circuiting ball power steering |
| Brakes |
| Running brake |
Dual circuit compressed air brake |
| Auxiliary brake |
Engine exhaust brake |
| Parking brake |
Air discharging with spring control |
|
| Dual circuit compressed air brake |
| Engine exhaust brake |
| Air discharging with spring control |
|
| Tires |
11.00 R 22.5 11ps tires doule coin |
11 R 22.5 7ps tires double coin |
| Cabin |
MAN F2000 middling length flat roof cabin. one sleeping bed |
MAN F2000 lengthen flat roof cabin.one sleeping bed |
| electrics |
| Volts |
24 |
| Starter |
24V,5.58kw |
| Generator |
28V,1.54kw |
| Battery |
2×12V,135Ah |
| |
Cigarette lighter,air horn,headlamp,fog light,turning light,reverse light |
|
| 24 |
| 24V,5.58kw |
| 28V,1.54kw |
| 2×12V,135Ah |
| Cigarette lighter,air horn,headlamp,fog light,turning light,reverse light |
|
| Dimension |
| Wheelbase (mm) |
5625+1350 |
| Frontwheel track (mm) |
2036 |
| Rear wheel track (mm) |
1860 |
| front overhang (mm) |
1525 |
| Rear overhang (mm) |
3210 |
| overall length (mm) |
11710 |
| overall width (mm) |
2490 |
| overall height (mm) |
3270 |
| cargo body(L×W×H) (mm) |
9300*2326*600 |
|
| 5600 |
| 2036 |
| 1860 |
| 1525 |
| 1875 |
| 9000 |
| 2490 |
| 3270 |
| 6700*2326*600 |
|
| Weight(kg) |
| total mass |
32000 |
| kerb mass |
13500 |
| max.laden mass |
18500 |
| front axle laden mass |
7500 |
| rear axles laden mass |
1300 x 2 |
|
| 20500 |
| 9500 |
| 11000 |
| 7500 |
| 13000 |
|
| Performance |
| max.speed(km/h) |
88 |
| max.gradeability |
31% |
| Min.Ground clearance |
314 |
| Min.Turning diameter |
23.5m |
| Fuel consumption(L/100km |
36 |
|
|
| Others |
| without A/C |
| without rear window |
| white clearance lamps on the sun canopy |
| Iron bumper/articulated aluminium pedal |
| headlamp and rear lamp protector |
| water tank protector |
| HX front towing hook(double) |
| two parking wedges |
| two triangle warnings |
| 8kg extinguisher |
| oil security alarm |
| Fleetguard air filter |
| LED rear lamp |
|
| without A/C |
| without rear window |
| white clearance lamps on the sun canopy |
| Iron bumper/articulated aluminium pedal |
| headlamp and rear lamp protector |
| water tank protector |
| HX front towing hook(double) |
| two parking wedges |
| two triangle warnings |
| 8kg extinguisher |
| oil security alarm |
| Fleetguard air filter |
| LED rear lamp |
|
|
|
|
