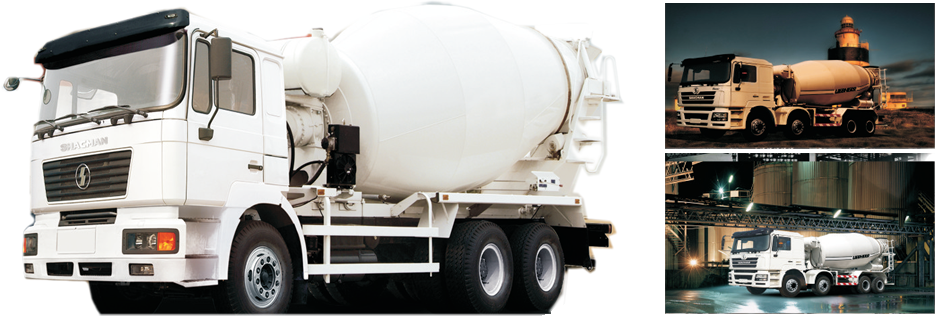

PRODUCTS :.:: Shacman Mixer



Model   SX5257GJBJR384   DIMENSION
Application Mixer truck

Max.length(mm)

 9135
Complete  kerb mass (kg) 13600   Max.width(mm) 2490
GVW (kg) 32500   Max.heigh(mm) 3900


Front / Rear overhang (mm)

 1525/2435
      Wheel base (mm) 3775+1400
      Track width(mm) 2036/1850

Engine
Model WP10.336
Make WEI CHAI
Power(kw/HP)  247/336
Max.Torque (N.m )/rpm 250/1200-1600
Displacement (L) 9.726
Emission Standards  Euro III
Clutch
Type Spring plate, diaphragm spring
Diameter (mm) φ430

Action

 Mechanical pull type, self adjusting
Air assisted clutch
Brake system
Type Drum
Service brake With dual-circuit compressed air brake
Park brake Power spring brake acting  on rear wheel
Auxillary brake Exhaust brake
Option WEVB

Steering     Chassis
Make Shashi Jiulong

Type

 Ladder structure with  parallel straight
Type Integral inner circulation  power steering   Dimension 300×80×(8+7)
Tires - Type (Standard)
  • 11.00-20
  • Options: 12.00R20/12.00-20/11.00R20/12R22.5


Cab - Type

Equipments/ Option

MAN D'LONG F3000, Lengthened flat roof

2 rear window, mechanical clerestory,
hydraulic suspension cab, A/C, hydraulic chair with seatbelts, one sleeping bed, hydraulic reversal cab, metal bumper, with USB, can play radio with MP3 format
Suspension     Axles
Front Suspension semi-elliptic springs with shock absorbers   Make SHAAN'XI HANDE
Rear Suspension  inverted leaf spring stabilizator  suspension   Front axle 7500kg
      Rear axle 16000kg(each other) Double reduction driving axle with inter-wheel differential and differential lock.
Cargo Box - Platform dimensions(mm)     Ratio 5.92：1
      Option 9500kg front axle
Electric
Type 24V
Starter .58kw(24V)
Generator  2.0kw(28V 70A)
Battery 2×135Ah
Performance
Max.speed (km/h) 90
Min.turning circle(m) 20.5
Min.ground clearance(mm) 314
Approach / Departure angle (°) 20/14
Max.gradeability(%) 31
Transmission
Make Fast
Model 9JS135

Control Type

 Manual
Gear Shift 9-forward and 1 reverse speeds
Fuel Tank
Capacity (L) 380
Material Aluminum
